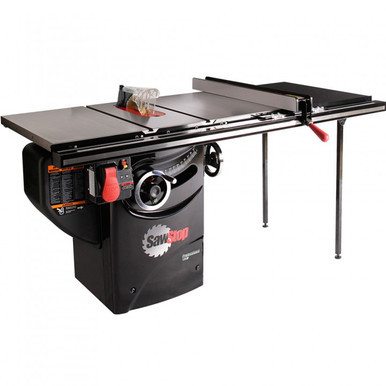

Ideal for both craftsmen and hobbyists, the SawStop 1.75 horsepower Professional Cabinet Saw (model PCS175-TGP236) delivers the performance you need with the peace of mind only SawStop's patented safety system can provide. The safety system detects when someone accidentally contacts the spinning saw blade, and then stops the blade in milliseconds — resulting in just a nick on a SawStop saw instead of the devastating injury. Built to satisfy the toughest expert users, the Professional Cabinet Saw features superior dust collection and an exacting fit and finish. This model comes with a 36-inch T-Glide fence system for added strength and increased precision as well as rails and extension table.
- 69 1/8" w, 33" d, 34" h
- Unmatched fit and finish with a keen attention to detail
- SawStop safety system
- 36" Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection
Â
| Motor | 1.75 horsepower, 1 phase, 110 volts, 14 amps |
|---|---|
| Cast iron table | 20 x 27 inches; 44 x 27 inches with extension wings |
| Extension wing | 12 x 27 inches |
| Blade | 10-inch diameter, 5/8-inch arbor |
| Blade tilt | Left |
| Maximum depth of cut | 3-1/8 inches |
| Maximum depth of cut at 45 degrees | 2-1/4 inches |
| Dado | 8-inch diameter, 13/16-inch maximum width |
| Arbor diameter at blade | 5/8-inch |
| Dust collection port | 4-inch diameter |
| Riving knife/splitter | 2mm thick |
| Dimensions | 69-1/8 x 33 x 34 inches (WxDxH) |
| Cabinet Footprint | 19-3/8 x 19-3/8 inches (WxD) |
