Name: Jet 101292 - (L90-15003) 15 Ton 11-1/2' Lift L-90 Series Chain Hoist - Super Heavy Duty
Brand: Jet
SKU: JET101292
Price: 10591.99 CAD
Availability: InStock

Jet 101292 - (L90-15003) 15 Ton 11-1/2' Lift L-90 Series Chain Hoist - Super Heavy Duty

SKU: JET101292

UPC: 59629825761

$10,591.99

Weight:

400.00 LBS

Availability:

Special Order: Usually Ships in 10-14 Business Days.

Minimum Purchase:

1 unit

Shipping:

$199.00 (Fixed Shipping Cost)

Product details

The strongest chain hoist available!
Exclusive Class V+ load chain is the world's strongest grade
Provides unparalleled safety for the most demanding applications
Chrome Molybdenum load gears for maximum strength and resistance to shock
Load sheave is designed for long wear with uniform pockets for correct chain contact
Drop forged hooks are designed to bend slowly to warn of overloads
Rolled edge on hand wheel cover acts as a chain guide and allows smooth operation even when pulling the hand chain at an angle
Positive ratchet, screw and disc are completely enclosed to protect the brake mechanism
Non-asbestos wet friction brake discs will not slip even when oil is present
Electrostatic powder coated before assembly to protect against rust and corrosion
Capacity unaffected by temperatures up to -40ÂºC with suitable winter lubrication
Tested to 150% of rated capacity
Meets OSHA and ANSI B30.16 standards (certificate included)
Made in Japan
NOTE: Custom Lifts are available in any length desired. Ask your local JET distributor for details!
Rated Lifting Capacity : 15 T
Rated Lifting Capacity : 30,000 lb
Standard Lift : 11-1/2'
Head Room : 38-7/8"
Number of Falls : 6
Load Chain Diameter : 9.0 mm
Force Req. to Lift Capacity : 88 lb
Length of Hand Chain Pulled to Lift Load 1' : 556'

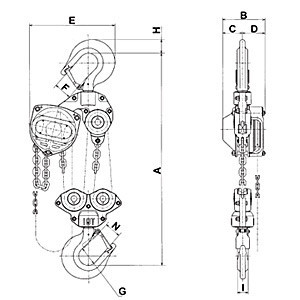

A: 38-7/8"
B: 9-1/4"
C: 3-9/16"
D: 5-11/16"
E: 19-3/8"
F: 3-13/16"
G: 4"
H: 3-7/64"
I: 2-7/16"
N: 3-3/16"
