Description:
- 7 Amp. 10,800 RPM motor to give the power and speed to cut into the hardest wood
- Built-in dust extraction with dust bag
- Pre-set depth stops for quick and easy adjustment to common #0, 10, 20 biscuit sizes as well as simplex and duplex hardware

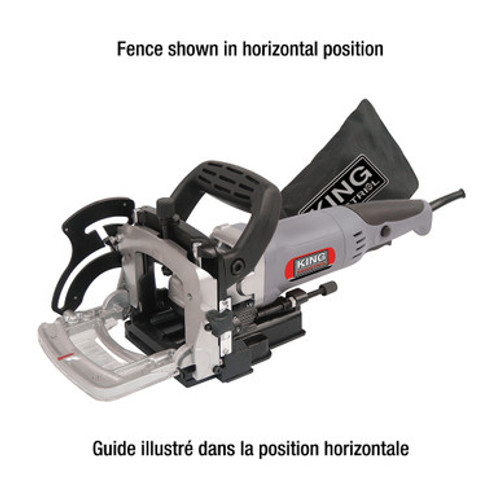

- Robust fence with 0 to 90° and 90° to 135° tilt adjustments with positive stops at 45° and 90°
- 45° location notch allows indexing off the outside of a mitered joint
- Precise micro height adjustment knob
- Trigger safety button prevents accidental starts
- Kit includes biscuit joiner with 4" carbide tipped blade, dust bag, hex. key and plastic carrying case
- Double insulation
Specifications:
- MAX. DEPTH OF CUT AT 0°: 3/4" (13 mm)
- BLADE DIAMETER: 4" (100 mm)
- ARBOR SIZE: 7/8" (22 mm)
- NO LOAD SPEED (RPM): 10,800
- MOTOR: 7 Amp.
- VOLTAGE: 120V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 15" x 7-1/4" x 6-3/4" / 8 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 16-1/4" x 7-3/8" x 10" / 11.5 lbs
