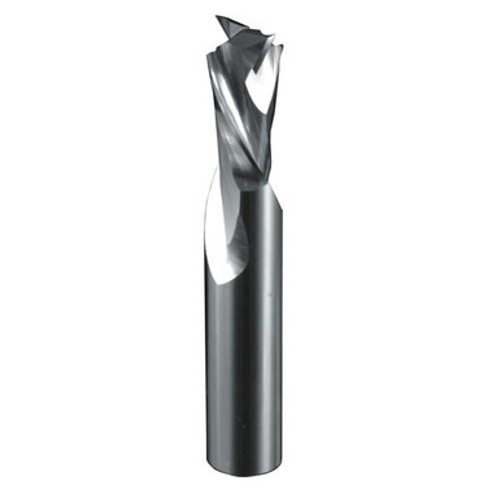

    Freud 77-510 - 1/2" (Dia.) Double Flute Mortise Compression Bit

    • SKU: 77-510
    • UPC: 008925059875
    $82.99
    Weight:
    1.00 LBS
    Availability:
    Usually in Stock and Ships in a Few Business Days
    Minimum Purchase:
    1 unit
    Shipping:
    Calculated at Checkout
    Adding to cart… The item has been added

    Product Description

    Shorter up shear length allows bit to be used for grooves and mortises without chipping top surface.


    • Also ideal for through cuts in double sided sheets that are 5/8" thick or less.
    • Combination of up and down shear flutes eliminates chipping on both sides of double sided panels.
    • Routs melamine, veneer plywood and other double sided materials, as well as hardwoods and softwoods.
    • Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers.
    • Double flute spirals are for extra clean cuts at faster feed rates.
    • Machine Use: Router
    • Materials: Wood



    Overall Diameter 1/2''
    Carbide Height 1-3/8''
    Shank Diameter 1/2''
    Overall Length 3-1/2''
