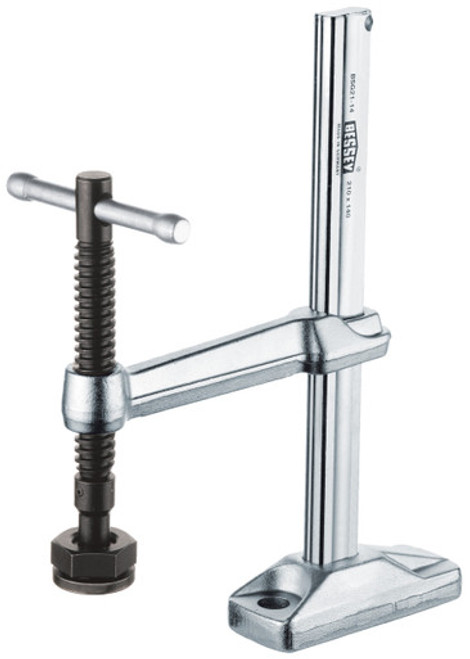

Bessey BSG21-14 - 8" Hold-down,T-bar w. MorPad

$230.00 $255.56
(You save $25.56)
SKU:
BESBSG21-14
UPC:
788502202367
Weight:
7.10 LBS
Availability:
Special Order: Usually Ships in 3-4 Weeks
Shipping:
Calculated at checkout
Qty:

Product Details

Clamp, Metalworking, Hold Down, Table Mount, 8 Inch X 5.5 Inch, 2650 Lb

For fastening to tables and other equipment. Long life due to heat-resistant pressure plate with sintered steel inserts, which can be tilted to 35 degrees. Mounting hole accepts 5/8 inch bolts. BESSEY. Simply better.

  • Heat treated profile
  • Tilting and height adjustable
  • Lever mechanism
  • Rapid clamping and release
  • Mounting holes accept 5/8" diameter bolts
  • Fast and secure
  • Hold down table clamps (BSG)

For fastening to tables and other equipment. Long life due to heat resistant pressure plate with sintered steel insert, which can be tilted up to 35°. Mounting hole accepts 5?8" bolts.

Specifications:

  • Jaw Width: 1.5 Inches.
  • Throat Depth: 5.5 Inches.
  • Nominal Clamping Capacity: 8 Inches.
  • Clamping Force: 2650 LBS.
  • Rail Dimensions: 1-3/16 Inches x 19/32 Inches.
  • Clamping Screw Diameter: 0.78 Inches.
