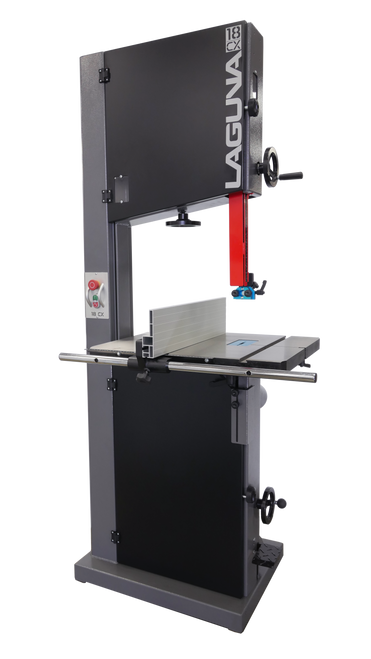

18|Cx Bandsaw | FOR METAL & WOOD

$3,999.00 $4,499.00
(You save $500.00)
SKU:
LAGMBAND18CX110175
Weight:
480.00 LBS
Order by Phone:
We can take your order over the phone or email. We offer professional advice on all our products
Qty:

Product Details

The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.



18|CX BANDSAW SPECIFICATIONS – VARIABLE SPEEDS FOR METAL & WOOD!

  • Part Number: MBAND18CX110175
  • Motor: 1.75HP, 100V, 14/7 Amp.
  • Recommended Breaker: 20 Amp.
  • Magnetic Starter: √
  • Min-Max Blade Width: 1⁄8″-1 1⁄4″
  • Resaw Capacity: 16″
  • Throat: 18 7⁄32″
  • Blade Length: 145″
  • Disc-Brake with Micro Switch: √
  • 110V Outlet on Back for Light: √
  • Window for Tension: √
  • Window for Tracking: √
  • Magnetic Blade Tension Guide: √
  • Worm Gear & Pinion Upper Guide: √
  • 10 Point Laguna Ceramic Guides: √
  • Mechanical Variable Speed Drive: √
  • Low Blade Speed: 100-290 FPM
  • High Blade Speed: 1200-3500 FPM
  • Anodized Insert w/Micro Adjustment: √
  • Dynamically Balanced Cast Iron Wheels: √
  • Urethane Single Piece Snap-on Tire: √
  • Cast Table Size: 20″ x 26″
  • Table Tilt: -6°, +45°
  • Quick-Release Tension: √
  • Hi/Low Anodized Aluminum Fence: 22 3⁄4″ x 7 1⁄4″ x 11⁄16″
  • Table Height: 38″
  • Dust Ports: 2 x 4″
  • Overall Height: 77 3⁄4″
  • Dimensions, Base: 27″ x 20″
  • Dimensions Overall: 38″ x 36″
  • Dimensions Box: 82″ x 34″ x 36″
  • SPECIFICATIONS
  • Weight (Net/Ship): 480/545 Lbs.

—————————————————————————————————

18BX & 18CX WHEEL SYSTEM

  • Foot Operated
  • 360° Omni-Directional
  • Rubber-Coated Wheels
  • Adjustable Rubber Pads
  • Oilite Bronze Bushing Allows for Less Friction and Longer Life
  • Easy Install with No Drilling Required
  • Pedal Raises & Lowers Front Wheel
  • Wheels Mounted Outside Frame to Maximize Stability

—————————————————————————————————

18BX & 18CX PRO LIGHT

  • Swivels 220°
  • 12 Volt/50 Watt
  • Tilts Vertically 320°
  • Built-In Transformer
  • Independent ON/OFF
  • Ribbed Aluminum Case
  • Halogen Hi-Intensity Light
  • Bright, Glare-Free Flood Light
  • Designed for Even Light Distribution
  • Reinforced Glass, Dustproof Design
  • Top and Side Cabinet Mounting Position
