Product Description
The MILWAUKEE M18 FUEL ¼ Blind Rivet Tool w/ ONE-KEY is the fastest cordless rivet tool. It eliminates the need for hoses and compressors while delivering up to 3X longer life than other cordless riveters. This rivet gun significantly increases productivity, installing rivets up to 50% faster than cordless competitors. The premium steel alloy 3-jaw design delivers more work between jaw changes. While lightweight, this Milwaukee rivet gun was designed to withstand harsh shop or assembly plant environments, manufactured with an all-metal gearcase, impact strength plastics, and protective over-mold. The POWERSTATE Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials. This rivet tool pulls up to 900 3/16 aluminum or 500 1/4 aluminum blind rivets on one charge with an M18 REDLITHIUM CP2.0 battery. M18 REDLITHIUM Battery Packs fit M18 tools, providing more work per charge and more work over the battery life. REDLINK PLUS Intelligence ensures maximum performance and protects the rivet tool and battery against overloads, over-heating, and over-discharge. ONE-KEY compatibility allows for tracking and managing tools.
Features:
- Up to 50% faster than cordless competitors
- Maximum tool and jaw durability provide up to 3X longer life
- Installs 3/16" (4.8mm), 7/32" (6.0mm), 1/4" (6.4mm) and 9/32" (7.0mm) aluminum, steel, and stainless steel rivets
- Installs up to 500 1/4" aluminum blind rivets on one REDLITHIUM CP 2.0Ah battery charge
- POWERSTATE Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials
- 1.18" stroke length
- Weighs only 5.6 lbs. with REDLITHIUM2.0Ah battery
- Only 12.5" in length including the mandrel collector
- ONE-KEY Compatible: Ability to Track and Manage tools for increased productivity and investment protection
- Premium rubber over-mold withstands corrosive materials and provides increased comfort when in use
- Compatible with all M18 batteries and chargers
Specifications:
- Rivets Included: No
- Battery Size: 18 Volt
- Batteries Included / Bare Tool: Battery Included
- Case Included: Yes
- Included Accessories: Nose Piece Wrench, Retention Nose Piece 4 Pack, Mandrel Collector, Hanging Ring, Belt Clip
- Mandrel Wrench Included: Yes
- Weight Battery Installed (lb): 5.6
- Color Finish: Black; Red
- Battery Amp Hour (Ah): 2
- Battery Composition: Lithium-Ion (Li-ion)
- Battery Voltage: 18
- Includes Charger: Yes
- Handle Material: Rubber
- Maximum Pulling Force: 4500
- Number of Batteries Required: 1
- Stroke Length (in): 1.18
- Weight Excluding Battery (lb): 4.66
- Product Type: Cordless Rivet Tool
- ANSI Safety Listing: No
- Housing Material: Aluminum
- Soft Grip Handle: Yes
- Material: Metal
- Battery System: M18
- FUEL: Yes
- Motor Type: POWERSTATE Brushless
- ONE-KEY Enabled: Yes
- Extensions Included: No
- Handle Length (in): 4.5
- Lockbolt Tips Compatibility: N/A
- Power Tool Branding: FUEL
- Belt Clip: Yes
- Brushless Motor: Yes
- Built-In Accessory Storage: Yes
- Integrated Work Light: Yes
- Fuel Gauge: No
- Badge Branding: FUEL
- Intgrated Work Light Type: Single LED
- Rivet Gun Mandrel Sizes Included: 3/16", 7/32", 1/4", 9/32"
- Rivet Material: Stainless Steel; Steel; Aluminum
- Number of Batteries Included: 2
- Rivet Stem Catch: Yes
- Rivet Gun Nose Reach (in): 3.13
- Compatible Rivet Sizes: 3/16" (4.8mm), 7/32" (6.0mm), 1/4" (6.4mm) and 9/32" (7.0mm)
- Grip Material: Rubber
- High/Low Power Adjustment: No
- Corded Cordless: Cordless
- Powered Tool Power Source: Electric - Cordless
- Rivets Used: Blind
- Swivel Head: No
Includes:
- (1) M18 FUEL 1/4" Blind Rivet Tool w/ ONE-KEY Bare Tool (2660-20)
- (2) M18 REDLITHIUM CP2.0 Battery (48-11-1820)
- (1) M18 & M12 Multi-Voltage Charger (48-59-1812)
- (1) M18 FUEL 1/4" Blind Rivet Tool w/ ONE-KEY Jaw Set (49-16-2660JS)

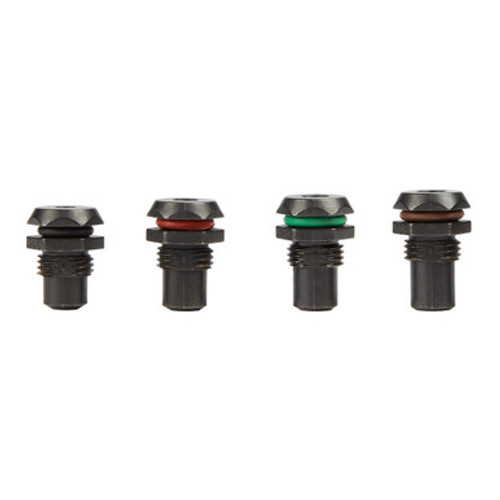

- (1) M18 FUEL 1/4" Blind Rivet Tool w/ ONE-KEY Retention Nose Piece 4-Pack (49-16-2660RP)
- (1) Nose Piece Wrench
- (1) Mandrel Collector
- (1) Hanging Ring
- (1) Belt Clip
- (1) Contractor Bag
