Product Description
Features & Benefits:
- Unique Plunge Action For Specialized Cuts
- 55" Guide Rail, Cutting Capacity of 2-3/16" (56 mm)
- Depth stopper enables splinter-free cutting
- Precision bevel cut feature maintains exact blade position for quick and easy bevel cutting without compensating adjustments
- Soft start feature gradually increases speed to eliminate start up shock
- Constant speed control maintains constant speed under heavy load
- Overload protection prevents motor burnout due to current overload
- Variable speed dial adjusts cutting speed based on materials or application
- Lightweight design with magnesium blade case, gear housing and base
- Close to wall cut of just 11/16"
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
Specifications:
- Blade Diameter --6-1/2" (165 mm)
- Arbor --13/16" (20 mm)
- Maximum Cutting Capacity:
- 0° --2-3/16" (56 mm)
- 45° --1-9/16" (39 mm)
- 48° --1-1/2" (38 mm)
- No Load Speed -- 2,200 - 6,400 RPM
- AMPS (120 V) -- 12.0 A
- Vibration Level -- 2.5 m/s2
- Noise Level -- 81 dB(A)
- Overall Length -- 13-3/8" (341 mm)
Standard Equipment:

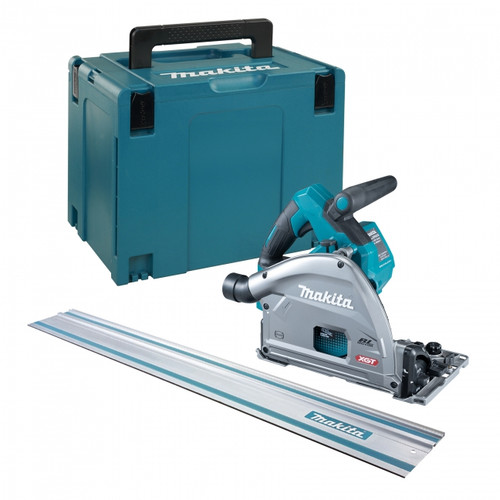

6-1/2" C.T. Blade 48T (A-99932), Hex Wrench 5 (783203-8), Front Cuff 24 (195546-0), 55" (139.7 cm) Guide Rail (194368-5)
