Product Description
Description:
6" X 108" OSCILLATING EDGE & SPINDLE SANDER
Features
- Powerful 2 HP motor
- Precision ground cast iron tables
- Oscillating sanding belt tilts from 0º – 90º instead of the table
- Includes non-oscillating spindle sander for contour sanding
- Balanced 7” aluminum drive wheel and 4” idler rubber wheel ensure positive grip

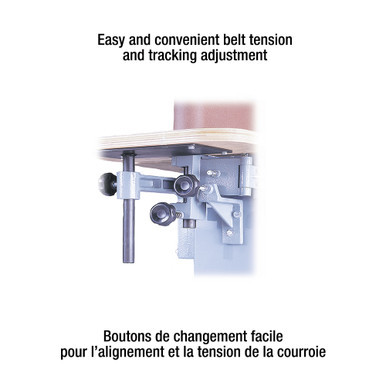

- Quick release sanding belt tension lever
- Graphite pad reduces belt friction for increased sanding belt life
- Two 4” dust chutes on hinged safety guards for optimal dust collection
- Magnetic safety switch and top-mounted emergency stop button
- Includes miter gauge, work stop, three end-table inserts, and three 4-1/2” high spindle drums and sanding sleeves (1-1/2”, 2”, 3”)
Specifications
- Model: KC-6108-OSCM
- Belt: 6” x 108”
- Table size (front): 35-5/8” x 12”
- Table size (end table): 10” x 11-1/2”
- Belt speed: 3,150 SFPM
- Belt oscillation stroke: 3/4”
- Table travel (upward / forward/back): 4” / 4-1/2”
- Motor: 9.4 Amp.
- Voltage: 220V, 1 phase, 60 Hz
- Assembled dimensions (L×W×H) / weight: 60” × 28” × 49-1/2” / 485 lbs
