    King Canada KC-1236ML/KM-053/SS-1236 - 12" X 36" Gearhead Metal Lathe With Stand And Taper Attachment

    • SKU: KINKC-1236ML/KM-053/SS-1236
    $6,499.00
    Weight:
    925.00 LBS
    Availability:
    Usually in Stock: Ships in 1-2 Business Days
    Shipping:
    $199.00 (Fixed Shipping Cost)
    Adding to cart… The item has been added

    Product Description

    Description:

    • Powerful 1.5 HP motor

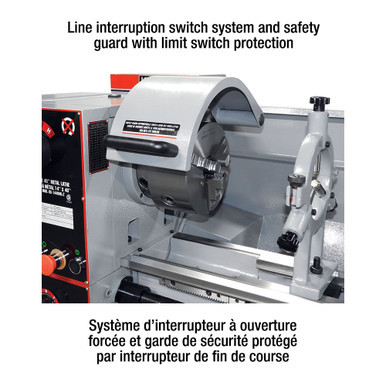

    • Safety guard with limit switch protection
    • Line interruption switch system needs a restart after a power failure
    • Guideway and gears in headstock are all hardened and precision ground
    • Comes complete with 6"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool post, steady rest, follow rest, 10” DI-4 camlock face plate, thread chasing dial indicator, MT#3 dead center, MT#3 arbor taper, 1/2" drill chuck, full length splash guard, tool box, chuck keys and hex. keys
    • Includes Stand and taper attachment

    Specifications:

    • DISTANCE BETWEEN CENTERS 36"
    • SWING OVER BED 12"
    • SPINDLE BORE 1-1/2"
    • SWING OVER CROSS SLIDE 7-1/4"
    • TAPER IN HEADSTOCK MT #5
    • TAPER IN TAILSTOCK MT #3
    • WIDTH OF BEDWAYS 7-1/4"
    • TOTAL TRAVEL OF CROSS SLIDE 6-3/8"
    • TOTAL TRAVEL OF TOP SLIDE 3-3/8"
