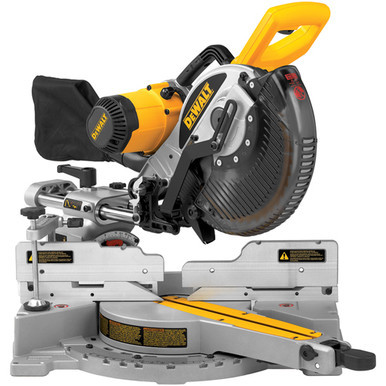

Product Description
- Exclusive bevel detent system - 7 positive stops delivers fast accurate repeatable cuts
- Adjustable stainless steel miter detent plate with 11 positive stops improves productivity & ensures cutting accuracy
- Optimizes cutting accuracy
- Machined base fence support maintains fence perpendicularity with blade for cutting accuracy
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Exclusive cross cut stop positions cutting head for maximum vertical cut capacity
- Best in class cross cut capacity 12" at 45° angle using back fence design
- Vertical cut capacity nested crown up to 6-1/4"
- Tall sliding fence supports up to 6" base molding to the left of blade & up to 3-1/2" to the right of the blade
- Miter capacity left 60° and right 52° for greater versatility
- Bevels 0-48 for increase cut capacity
- Cam lock miter handle provides fast locking action of miter table
- Horizontal handle improved ergonomics provides increased comfort
- Laser compatible, designed for use with the DWS7085 LED worklight or DW7187 DEWALT® adjustable miter saw laser system
- Lightweight (51 lbs.) with built-in carrying handle for easy portability
Specifications
| Blade Diameter | 10" |
|---|---|
| Amps | 15Amps |
| No Load Speed | 4,000rpm |
| Arbor Size | 5/8" |
| Vertical Capacity\: Baseboard Against Fence | 6" Left - 3-1/2 Right" |
| Vertical Capacity\: Crown Molding Vertically Nested | 6-1/4" |
| Horizontal Capacity\: Baseboard Lying Flat | 14" |
| Horizontal Capacity\: Crown Molding Lying Flat | 10-3/4" |
| 45° Bevel Cut Capacity (dimensional lumber) | 2x12 (2x14 with back fence) |
| 90° Cross-Cut Capacity (dimensional lumber) | 2x12 (2x14 with back fence)" |
| 90° Cross-Cut Capacity (Max Width) | 14" Special Set Up |
| 45° Miter Cut Capacity (Max Height) | 4" |
| 45° Miter Cut Capacity (Max Width) | 8" |
| Tool Weight | 51lbs |
| Shipping Weight | 66lbs |
