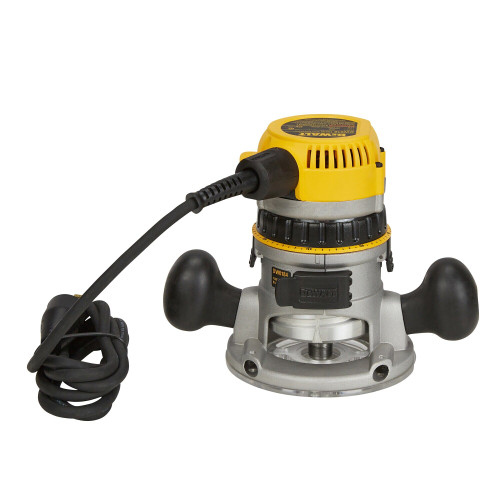

DEWALT DW616 - 1 3/4 MAXimum Motor Hp Fixed Base Router

  • SKU: DW616
  • UPC: 028877301570
MSRP: $229.00
$229.00
$199.00
(You save $30.00 )
Weight:
10.00 LBS
Availability:
Usually in Stock and Ships in a Few Business Days
Shipping:
Calculated at Checkout
Voltage:
120V
Group:
Tools
Type:
Corded
Adding to cart… The item has been added
  • 1-3/4 HP (maximum motor HP), 11.0 Amp motor provides the power to rout smoothly through the toughest hardwoods
  • Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
  • Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
  • Quick release motor latches for fast and easy motor pack removal for bit and base changes
  • Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
  • Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
  • Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
  • Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
  • Dust-Sealed Switch protects against dust ingestion for longer switch life
  • Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
  • Nickel plated motor housing for a smooth, long-lasting depth adjustment
  • Right or left switch and cordset location provides the ability to have the switch in your right or left hand
  • Flat top for easy bit and depth changes
  • Self-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits

Specifications

Amps 11.0Amps
Horsepower 1-3/4HP
No Load Speed 24,500rpm
Collet Diameter 1/2", 1/4"
Plunge Stroke N/A"
Depth Stop Micro-fine depth adjustment ring
Base Dimension 6"
Spindle Lock No
Tool Weight 7.1lbs
Shipping Weight 10lbs

Includes:

  • DW616M motor pack
  • DW6184 fixed base
  • 1/4" and 1/2" collets
  • Sub-base concentricity gauge
  • 2 wrenches
