Product Description

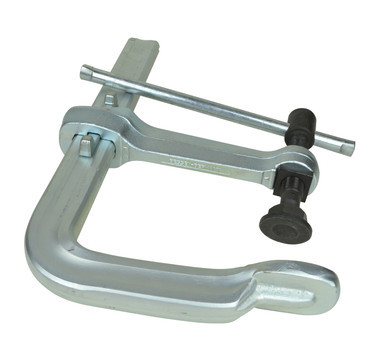

High-Performance, Extra Heavy Duty, 36 Inch Capacity, with 8 Inch Throat Depth
The 7200 series extra heavy duty clamps are exclusive /unique to BESSEY. No other clamp manufacturer in the world makes a sliding arm clamp like these. The BESSEY 7200 series are the biggest, heftiest sliding arm clamps ever made. The 7200 series are designed so that a person can create up to 7,770 lbs of clamping force by hand. To make repetitive tasks easier with these heavy clamps BESSEY has integrated a wedge that can be used to lock the sliding arm in one spot along the clamp rail. Like the others in our high performance line, the 7200 series features the new improved MorPad for smoother, more efficient clamping. These clamps are made in Germany, in BESSEY's own factory from steel that comes from Bessey's own steel mill. BESSEY is the only clamp manufacturer with quality control from raw material to finished product. BESSEY created the first sliding arm clamp and to this day remains the leader in the category in quality and design BESSEY. Simply better.
- Unique BESSEY MorPad tilts to 35°
- Sliding arm is made of tempered, drop-forged steel
- Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
- After bending and forming of the fixed jaw the rails are heat treated for maximum strength
- Specially hardened spindle reisists weld spatter
- Does the work of C Clamps … but does it 9x faster
- Extra heavy duty all-steel bar clamps (7200 Series)
Robust’ would hardly begin to describe these highly capable clamps which are designed for extra heavy industrial applications. The spindle has a 36 mm hexagonal head to assist in tightening (torque of 100 Nm or less). Comes with: Standard rail profile, specially designed MorPad.
Specifications:
- Jaw Width: 2 Inches.
- Throat Depth: 8 Inches.
- Nominal Clamping Capacity: 36 Inches.
- Clamping Force: 7770 LBS.
- Rail Dimensions: 1-31/32 Inches x 1 Inches.
- Clamping Screw Diameter: 0.925 Inches.
- Maximum Torque Input: 73.75 FT/LBS.
- Handle Length: 13.75 Inches.
- Material Composition: Steel
- Color / Finish: Zinc plated steel
